Introducing the HighwayGuard Barrier System

“The HighwayGuard is a Game Changer in the steel barriers equipment space”
– Ashley Woodcock – Director, RPM Hire

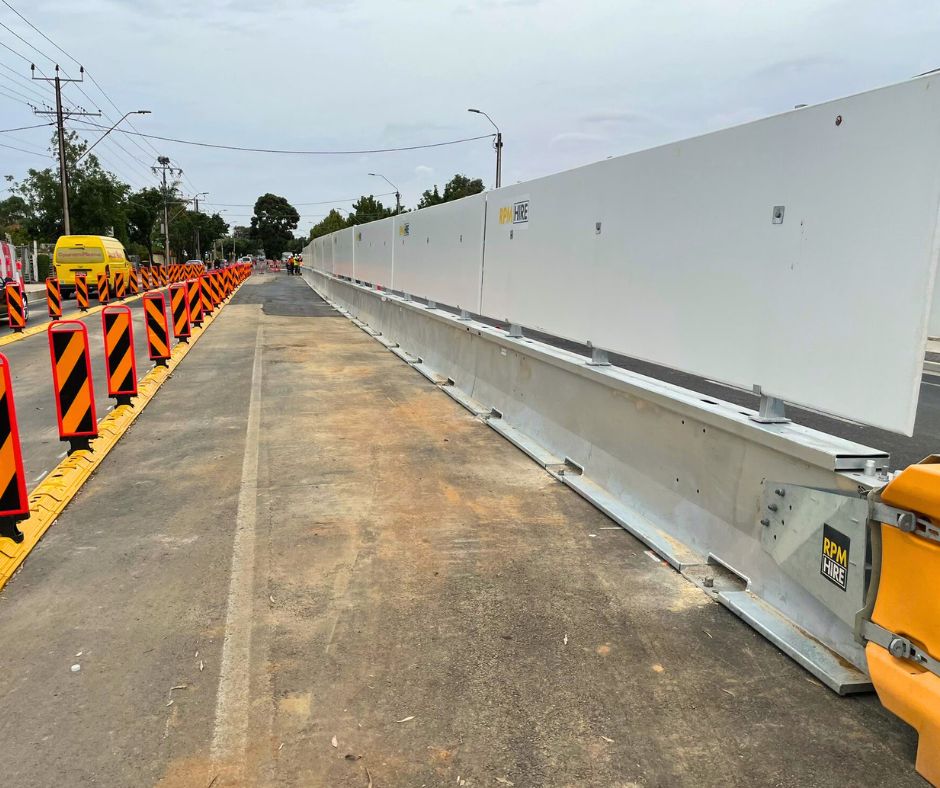

HighwayGuard Traffic Barriers

The HighwayGuard is a state-of-the-art steel road safety barrier system designed to enhance worker and motorist safety during roadworks and in high-risk traffic areas. This approved and accepted barrier offers superior protection with its high-strength steel construction and innovative design. Available through RPM Hire in  Melbourne, Brisbane, Sunshine Coast, Sydney, Perth, Hobart and Adelaide. The HighwayGuard system provides a versatile and efficient solution for temporary and permanent traffic management needs. With its quick installation process and minimal deflection, it is a highway barrier ideal for a wide range of applications, from short-term road maintenance to long-term infrastructure projects. Let’s see why HighwayGuard is the right choice for your next project

Key Features

  • Low deflection – Able to achieve 25mm deflection with our MDS system
  • Ability to connect to your existing MASH compliant BG800 barrier and multiple crash cushions
  • MASH 16 TL-3 & TL-4 barrier with narrow profile, just 0.54m wide
  • Nationally Accepted road safety barrier
  • Latest generation MASH 16 TL-3 & TL-4 barrier
  • Lower transport costs than alternative barriers
  • Under barrier drainage
  • Quick installation- Two-part system of unique T-connector and barrier for rapid connection and disconnection
  • Integral post fitting, suitable screens and fencing options
  • Multiple lifting points and grab options for minimised labour and enhanced safety
  • Optional angled barrier and connections to adapt to challenging road conditions including intersections, lane narrowing and roundabouts
  • Optional wheelsets for flexible access
Contact Us
Request More Information
Download CAD and 3D Models
  • Highway Guard Set

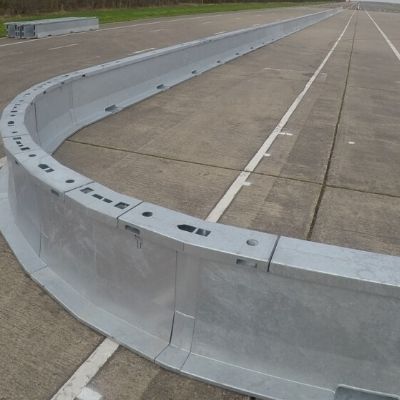

  • HighwayGuard Bend
  • HighwayGuard – Angled Barrier and T-Connectors

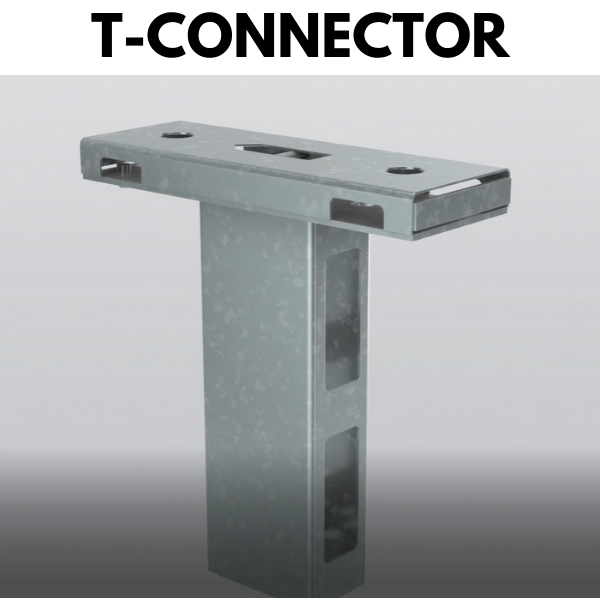

  • T-connector

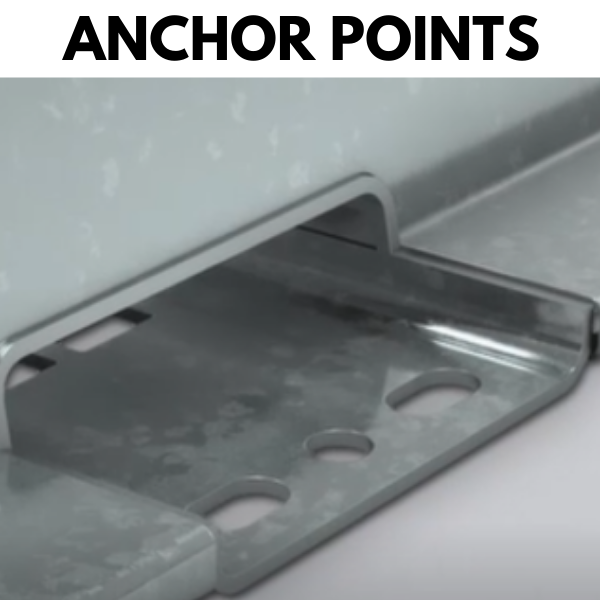

  • Anchor Points

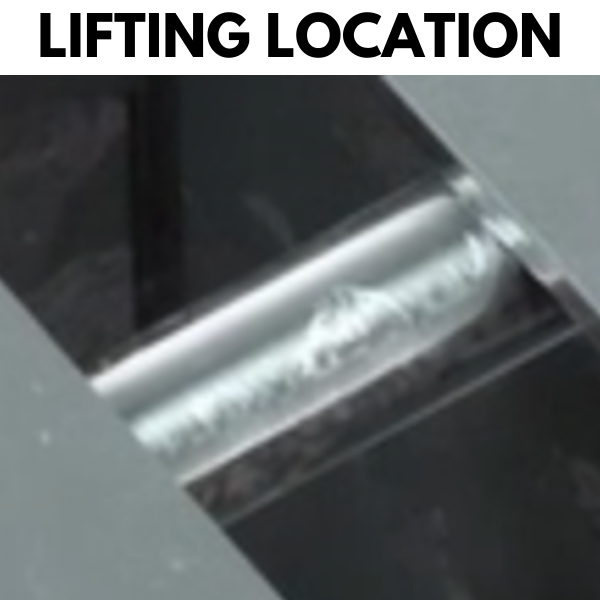

  • Lifting Location

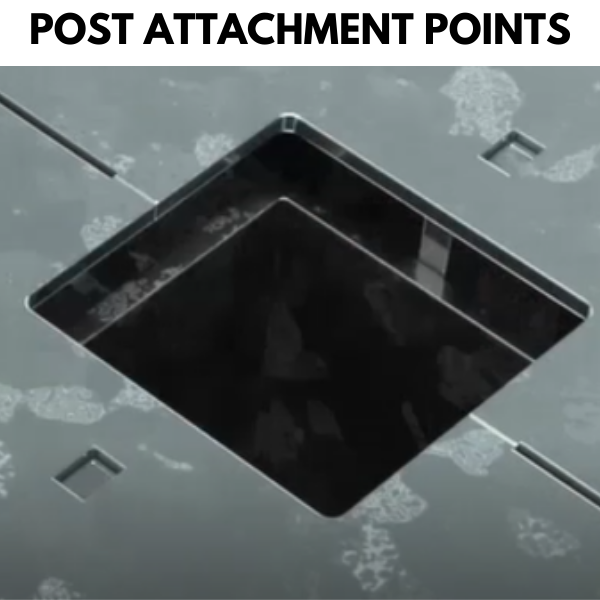

  • Post Attachment Point
  • HighwayGuard – Wheelsets

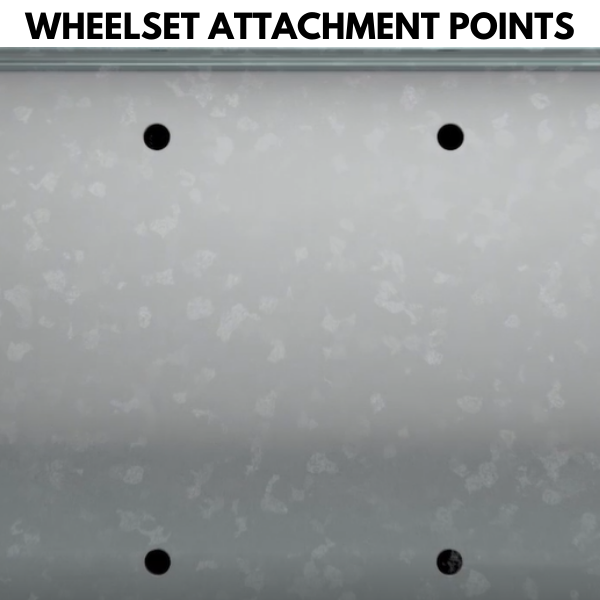

  • Wheelset Attachment Point

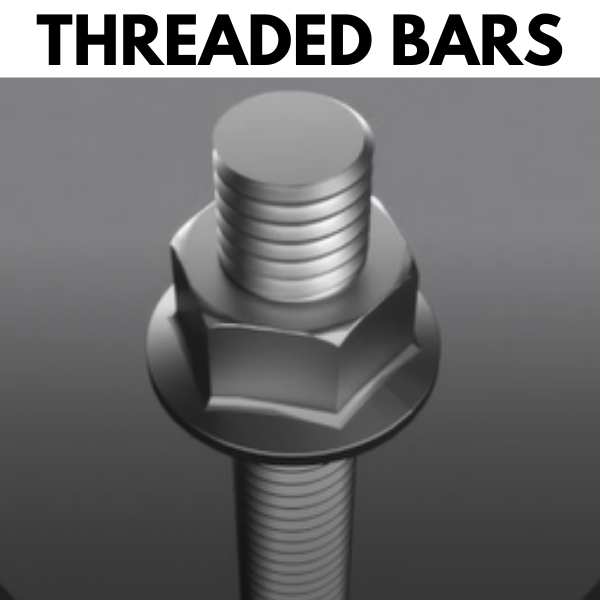

  • Thread Bar
  • HighwayGuard – BG800-Transition

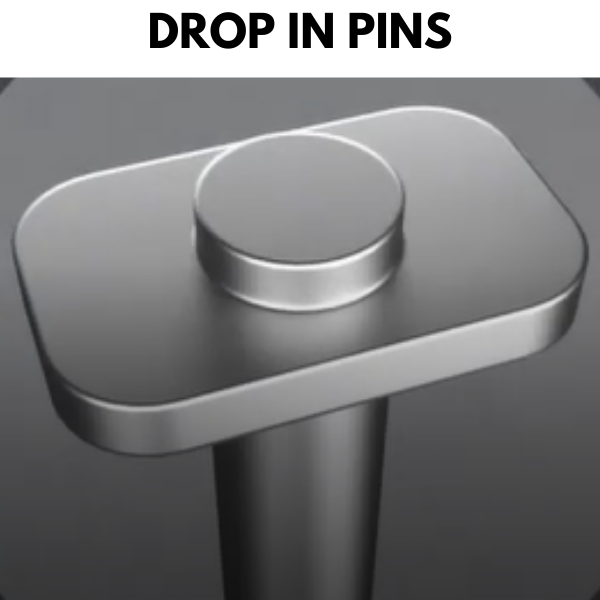

  • Drop in pins

Steel Highway Barriers For Hire

HighwayGuard MASH TL3 and MASH TL4 steel road safety barriers are engineered to provide maximum protection in high-risk traffic environments. Typically, steel barriers are primarily used to:

  • Separate work zones from live traffic
  • Prevent vehicle intrusion into construction areas
  • Redirect errant vehicles safely
  • Create temporary road diversions

The HighwayGuard system offers several advantages over traditional concrete barriers:

  • Lightweight design for easier transport and installation
  • Minimal deflection, allowing for use in space-constrained areas
  • Quick and simple connection system for rapid deployment
  • Galvanised steel construction for durability and longevity
  • Smooth profile to reduce vehicle damage upon impact
  • Compatibility with various end treatments and crash cushions

These features make the HighwayGuard steel road safety barrier an excellent choice for both short-term and long-term traffic management solutions, ensuring the safety of all road users.

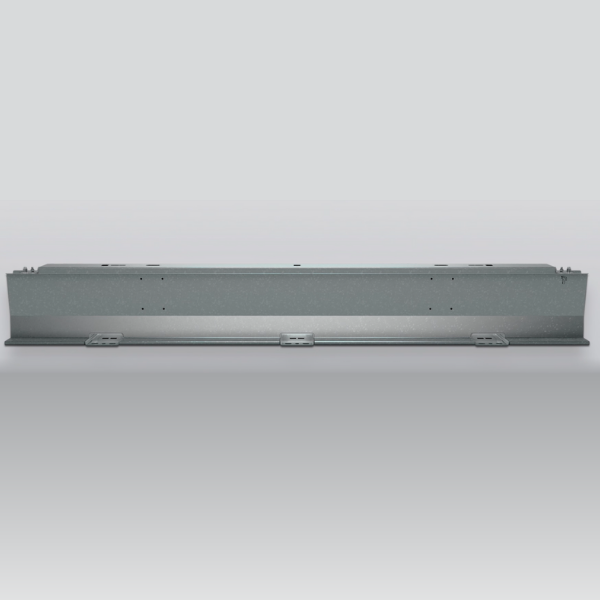

Measurements

Length 6m
Height 0.80m
Width 0.54m
Weight 99kg per metre

HighwayGuard – Angled Barrier and T-ConnectorsHighwayGuard – Angled Barrier and T-Connectors

  • The angled barrier and T- connectors allow for the HighwayGuard to be installed with various degrees of angles, to meet the requirements of any project, including work on intersections, lane narrowing and roundabouts



HighwayGuard – WheelsetsHighwayGuard – Wheelsets

  • Multiple access points that can be opened and closed by hand in minutes
  • Allows for flexible access for site crews and road workers

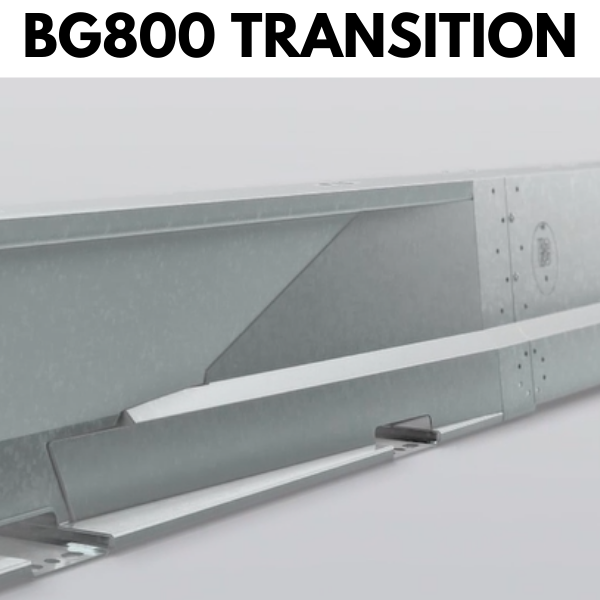

HighwayGuard – BG800-TransitionHighwayGuard – BG800-Transition

  • Connect the HighwayGuard barrier to your existing MASH compliant BG800 steel barrier with the BG800 transition piece.
  • Combination of both barriers can be used on the same project, depending on availability and project needs.

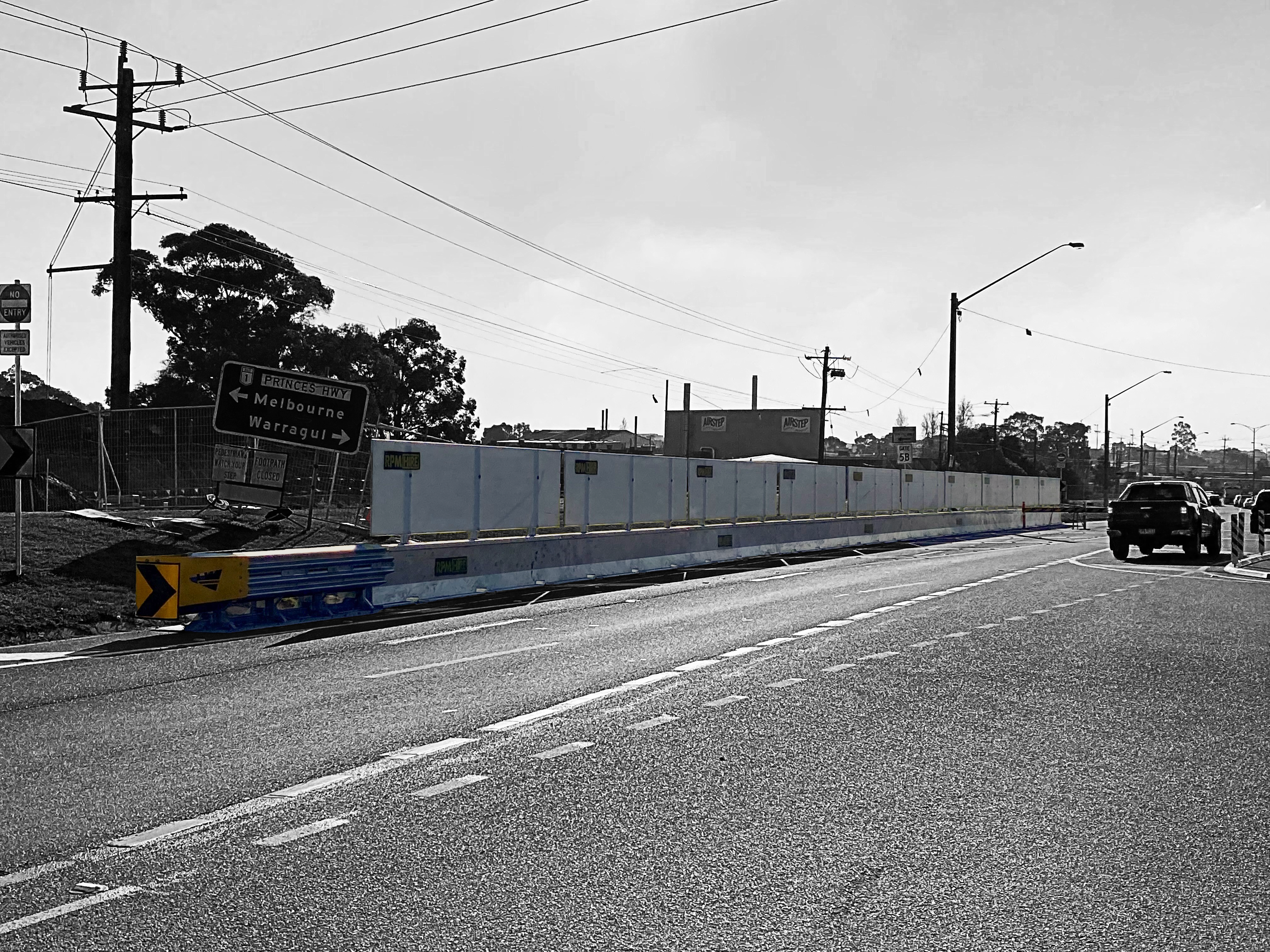

HighwayGuard – HighwayGuard to QuadGuard Transition

  • Fully Meets compliance by eliminating snag points that are pose as a hazard to motorists, while creating a smoother transition from barrier to end treatment to safely redirect errant vehicles.



HighwayGuard – Removeable Anchors

  • Fully recoverable after demobilisation, leaving no metal in the road. Zero risk to road users, zero environmental impact.

  • Reusable across multiple relocations with no new hardware required, enabling cleaner, faster, and fully compliant road restoration.

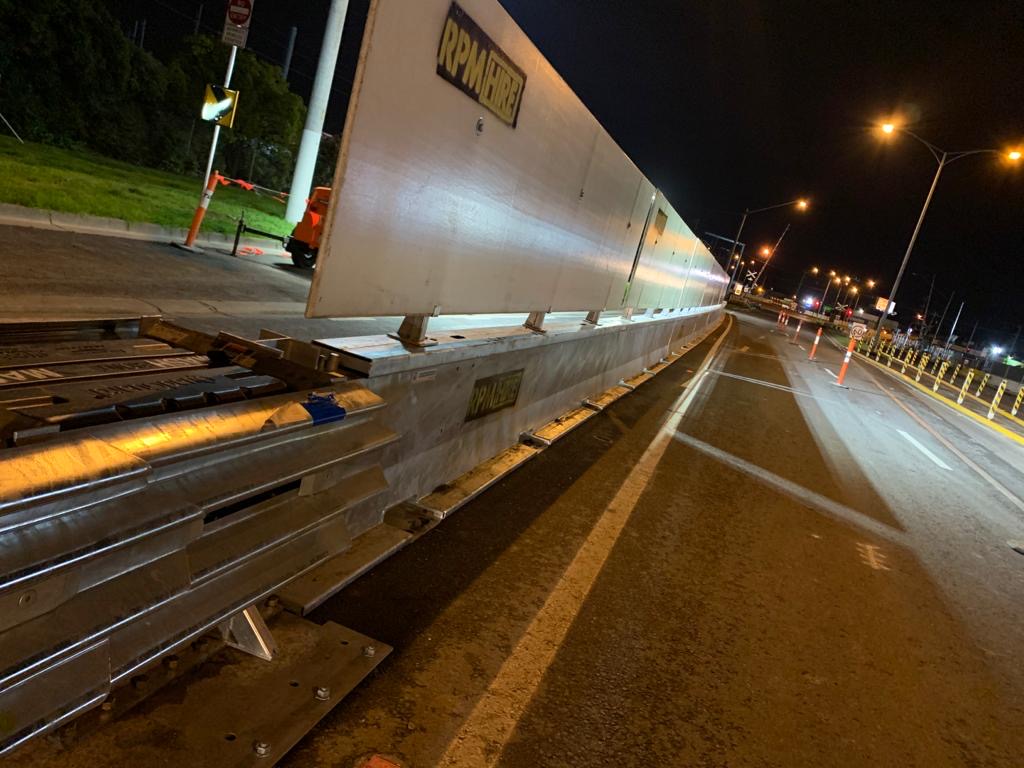

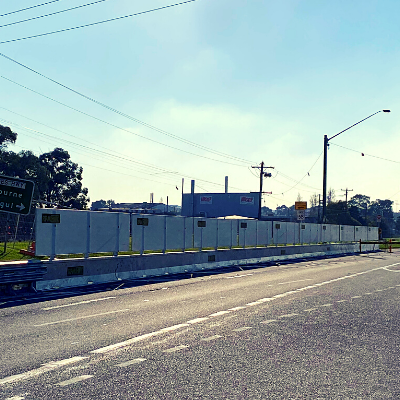

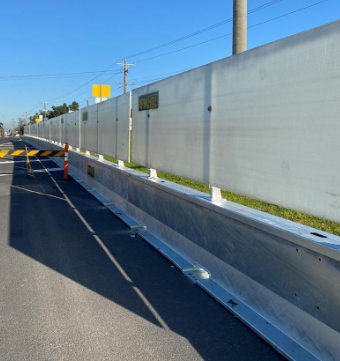

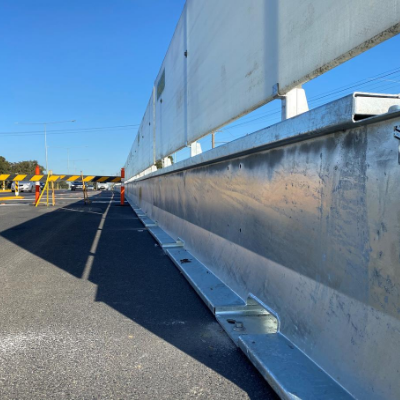

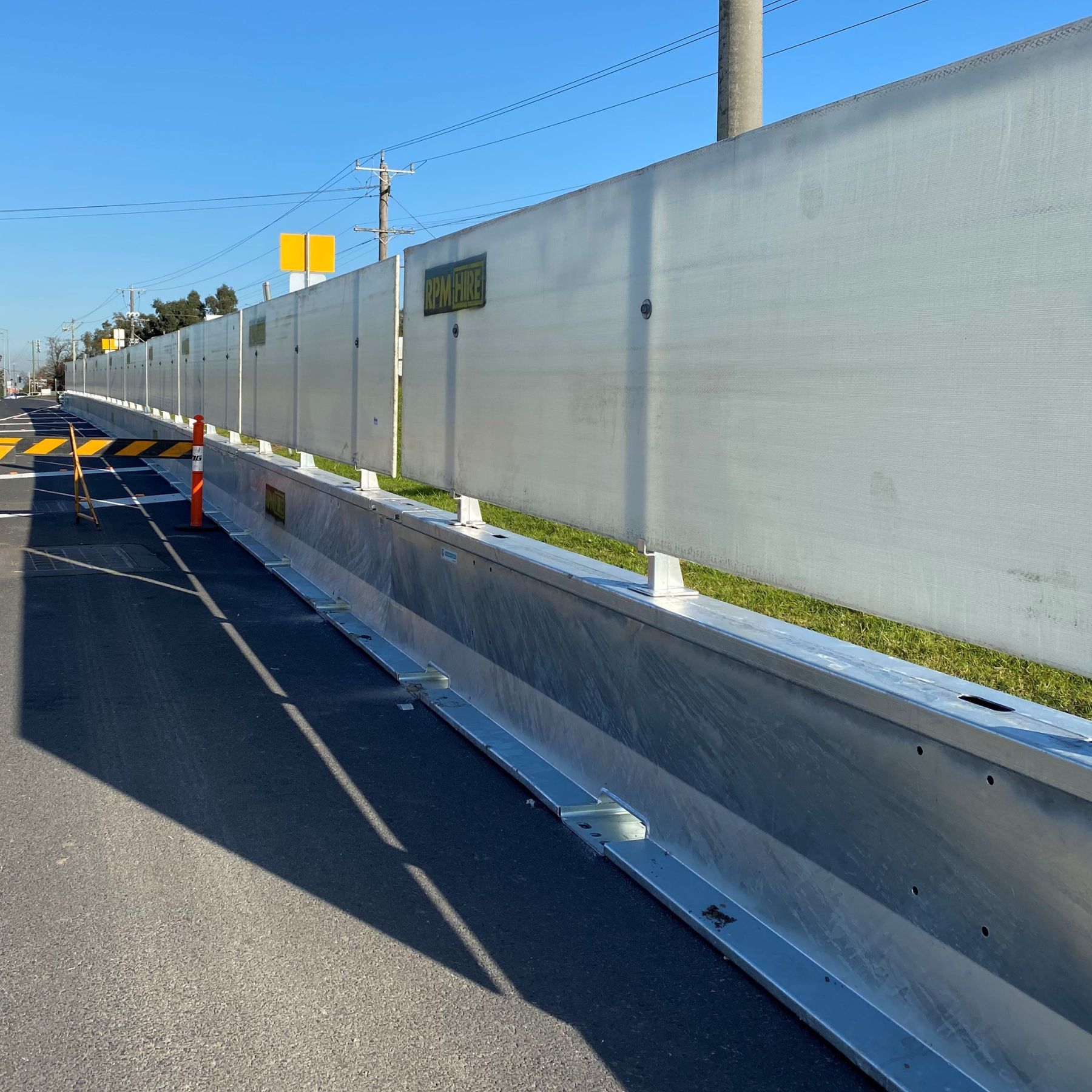

HighwayGuard – Gawk Screens

  • Gawk screens are an additional component designed to be added to the HighwayGuard Barrier to help keep road users from viewing your worksite behind the barrier.



HighwayGuard – Noise Cancelling Gawk Screens

  • Noise Cancelling Gawk screens are an additional component designed to be added to the HighwayGuard Barrier to help reduce noise pollution from your site.

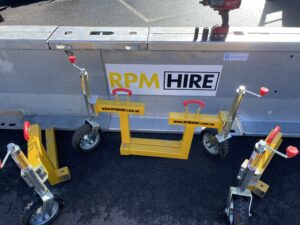

HighwayGuard – RPM Hire’s Wheelsets

  • Allows for flexible access for site crews and road workers
  • Can easily move 1 barrier for ease of access out of or on to your site

Symmetrical barrier sections with universal T-connector allows any section to connect to another, in either direction, significantly lowering installation time, operational costs and reducing inventory.

Multiple openings can be created by installing the optional wheelset. Multiple openings give flexible access without having to manoeuvre around the barriers.

RPM Hire have a extensive range of road safety barriers to suit your project needs. In addition to the HighwayGuard steel barrier, we supply and install the BG800, concrete barriers and water-filled barriers.

In addition to a range of crash cushions including the Smart crash cushion, Absorb 350, Absorb M, SLED and Quadguard CZ.

The HighwayGuard Steel Road Safety Barrier is available for hire in Victoria, New South Wales, Queensland, Western Australia and Tasmania,.

Call now on 1300 479 570 or complete an online enquiry form.

HighwayGuard barrier hire prices are comparable with other road safety barriers, depending on project requirements.

Speak to one of our traffic management specialists today to find out more about pricing, product availability, and product advice. Call now on 1300 479 570 or complete an online enquiry form.

The HighwayGuard and the HighwayGuard LDS steel barrier installation manual can be found in the download tab on the HighwayGuard barrier page. If you have any questions about steel barrier installation contact our barrier team online now or call 1300 479 570.

HighwayGuard Engineering Explained

Comparison Of Barrier Types

Each barrier type – water-filled, steel, and HighwayGuard – has its own advantages.

Water-filled barriers are great for low-speed areas, events, and smaller budgets.

Steel barriers are quick and easy to set up and work well in mid to high-speed zones, depending on the model. They offer top-notch protection with a 13 cm deflection (using the MDS system), ensuring safety on both sides of the barrier.

HighwayGuard barriers are perfect for high-speed zones. They offer the highest protection rating, cost savings, and come with an optional wheelset for easy movement.

To learn more about the comparison of road safety barrier types, read our blog!

HighwayGuard Road Safety Barriers Available Australia-wide

RPM Hire is proud to offer HighwayGuard road safety barriers for hire across Australia. With strategically located branches in major cities, including Melbourne, Sydney, Brisbane, Adelaide, Perth, and Hobart, we ensure this essential road safety equipment is readily accessible wherever it’s needed. Our extensive network allows us to provide prompt and efficient service, delivering and installing HighwayGuard barriers to project sites nationwide.
